An update to the technical and stylistic workings of an industry icon.
5 years after the launch of the Linea PB, which has become a trusted industry workhorse, La Marzocco introduced a version of the machine equipped with the most advanced La Marzocco technologies. These include pre-heating system, independent boilers, hot water mixing valve accessible from the side panel and Pro Touch steam wands. The Linea PB X features refreshed aesthetics based on the presence of barista lights as standard and white details such as logos, manometer, display lettering and keypads. The dynamic preheater ensures unmatched temperature stability, provides steady brew water and steam even at the peak of the morning rush. The Linea PB’s lower profile and increased work area also make it practical, without abandoning world renowned Italian design.
Highlights
digital display
Intuitive programming makes it easy to adjust machine parameters.
dual boilers
Separate boilers optimize espresso brewing and steam production.
independent saturated boilers
Separate saturated boilers for each group head allow barista to optimize temperature for individual coffees, ensuring thermal stability.
Essential features
dual pid (coffee and steam)
Allows you to electronically control coffee and steam boiler temperature.
insulated boilers
Reduce energy consumption while contributing to temperature stability.
eco mode
Can be programmed to enter stand-by mode, improving energy efficiency.
USB
Making it possible to update the firmware.
piero group caps
Re-engineered internal water path and flow-meter positioning that increase temperature stability.
pro touch steam wands
High performing steam wands that are cool to the touch.
hot water economizer
Enables you to fine-tune the tap water temperature for tea.
digital display
Intuitive programming makes it easy to adjust machine parameters.
barista lights
Led lighting allows you to focus on your extraction and the cup.
cup warmer – special order
Maintain espresso and cappuccino cups evenly heated at a proper temperature.
integrated scales – abr only
Precision scales integrated in the drip tray provide an improved level of consistency.

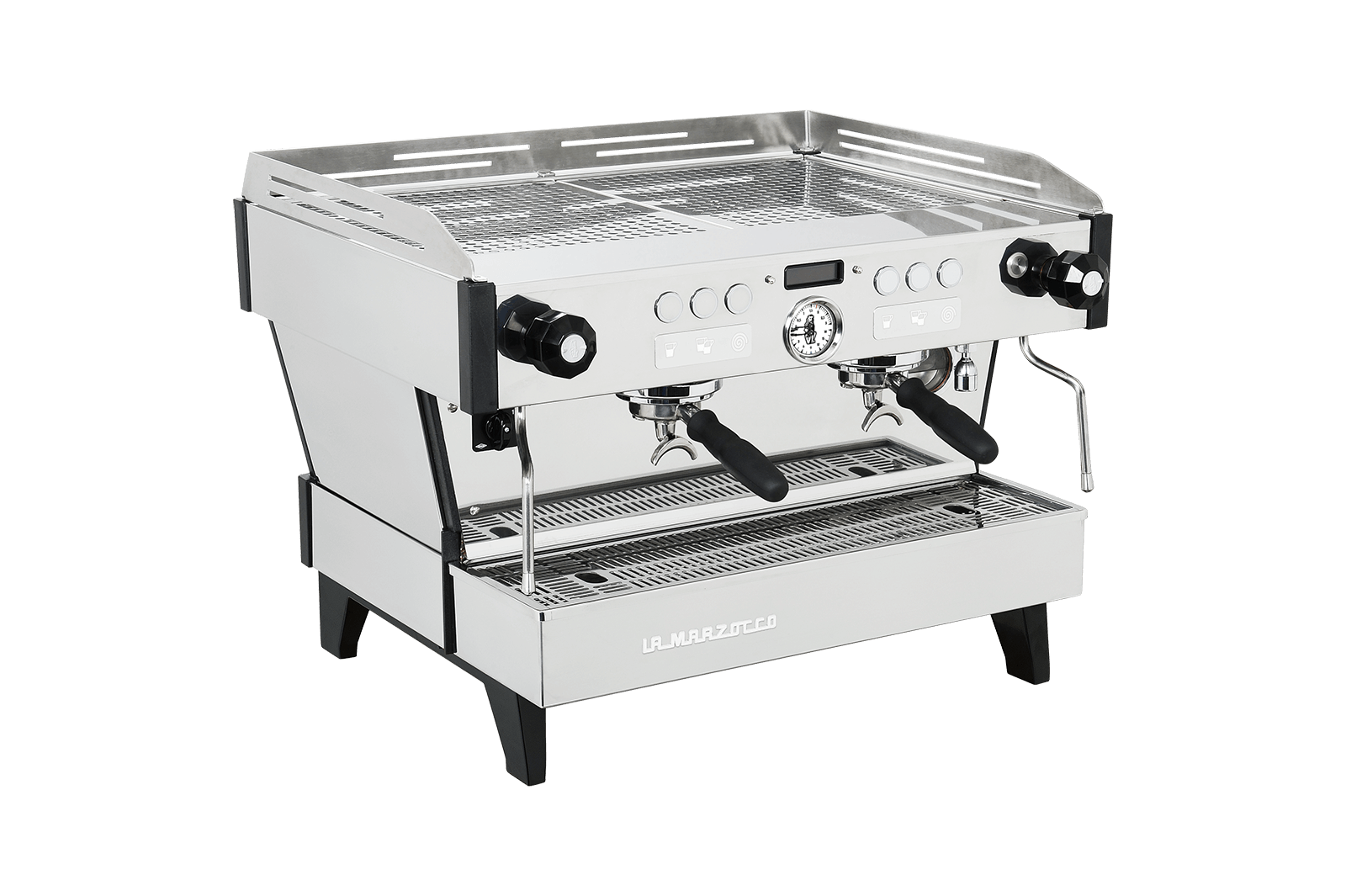

high legs – special order
Makes it easier to access beneath the machine.
personalized colors – special order
Customizable colors based on the RAL color system, on request.
technical specifications

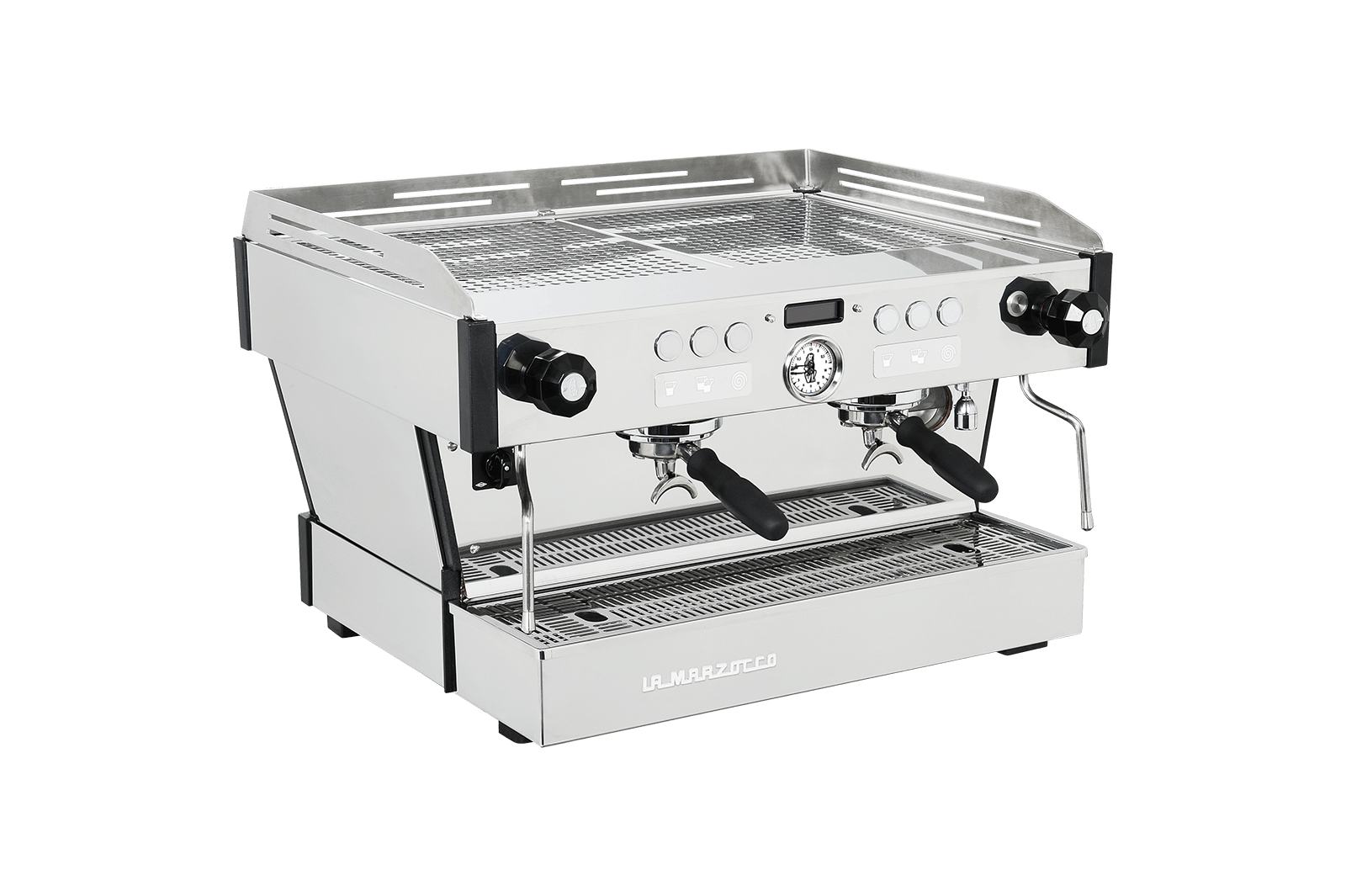

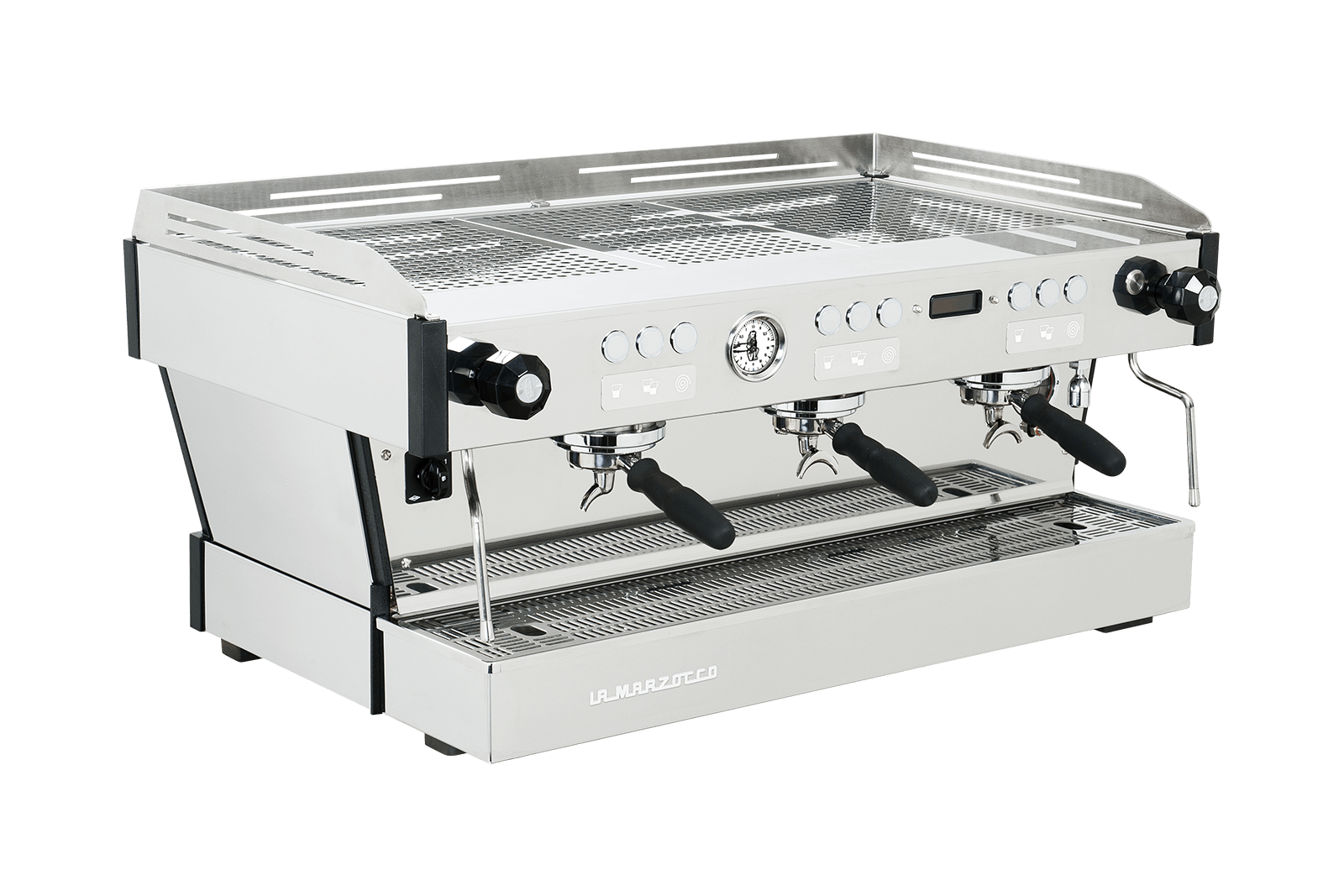

| Specifications | 2grp | 3grp | 4grp |
|---|---|---|---|
| Height (cm/in) | 53.3 / 21 | 53.3 / 21 | 53.3 / 21 |
| Width (cm/in) | 71 / 28 | 95 / 38 | 119 / 47 |
| Depth (cm/in) | 59 / 23 | 59 / 23 | 59 / 23 |
| Weight (kg/lbs) | 61 / 135 | 77 / 170 | 117 / 258 |
| Voltage (VAC) | 220 single phase | 220 single phase | 220 single phase |
| Wattage (min) | 3350 | 5830 | 6930 |
| Wattage (max) | 5670 | 7790 | 9470 |
| Coffee Boiler Capacity (liters) | 2 x 1.3 | 3 x 1.3 | 2 x 3.4 |
| Steam Boiler Capacity (liters) | 7 | 11 | 15 |
